Complex SQL3 Query

Data Model v0.5, by Zach Tomaszewski

for ICS 691-3, Fall 2001, taught by Dr. Joan Nordbotten

Table of Contents


The following system contains multimedia records for many types of animal. The system allows for the construction of a variety of classifications by using Node objects. By adding new classifications or exploring existing ones, users can examine a variety of relationships between animals. They can use alternate classifications, or even intersect different classifications, depending on their current information need. See v0.4 for more information.

Example Query

Here are some example information needs that illustrate the system.

Are most of the animals that live in the arctic white in color?
User: a high school student
Required classifications: Climate (one zone of which is "arctic")
Comments: This search would simply involve examining the images of the animals contained by the Arctic node of the Climate classification.

This is a relatively simple and common query for the system: return all the images of animals under this node. However, it demonstrates how this information comes from multiple tables and how user-defined functions will play a large role.

The following tables will be involved:

As well as the function:

returns a list of all animal TEid's under this node (or root)

SQL Statement

This statement assumes that user already knows the TEid for the Arctic node. It should return the common name, species name, and image of every animal contained by this Arctic node.

SELECT animals.common_name, animals.species_name, images.image
FROM images, animals
INNER JOIN animals ON (animals.teid = images.animal_id)
WHERE images.animal_id = get_contained_animals(node TEid);


This query uses a user-defined function. As such, the DBMS should include such extensions as user-defined selectivity functions, smart ordering of clauses, and optimization of expensive functions.

If there is no way to tell the system which to do first, then hopefully the WHERE clause is performed before the JOIN. If the JOIN is performed first, there could be up to a million rows joined (the number of known species). If it is performed after the WHERE, only tens or possibly hundreds of rows will be joined (only arctic animal species).

For my proposed system, it is important that the DBMS be able to handle large tables and access them quickly. Most of the frequently used and important information is present in the relationships between entities, rather than only as data within those entities. As such, TEid columns in all tables are frequently compared, especially by the recursive "get child entity" functions. Hopefully the system will handle such tasks quickly. This does not seem too high of a demand since TEids are easy to sort and compare.

Since OR-DBMSs must allow UDTs and UDFs, it is important for them to make "educated guesses" on the most efficient order of processing queries. This task is much more difficult and involved than in relational databases because the details of the functions and task times are not known by the OR-DBMS, as they are in a traditional relational system.


Comments or questions are appreciated.

Appendix: Related Aspects of SSM Data Model

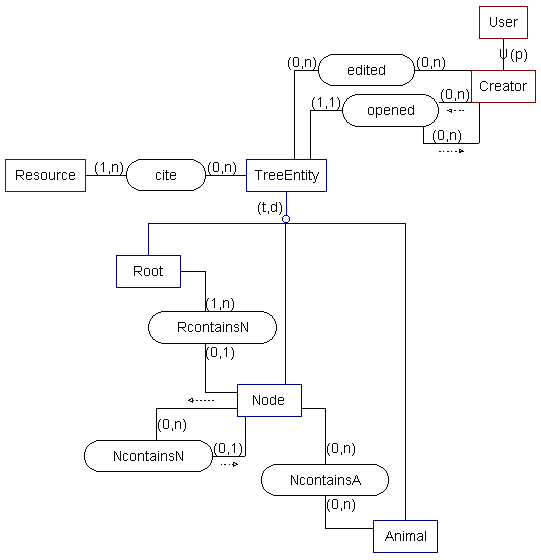

Complete SSM model

-- SSM model --

Description of Entities

id<integer> -- a TreeEntitiy foreign key
species_name<char(60)> -- the Latin Genus-species name for this animal
common_name<char(60)> -- the common English name for this animal.
keywords<vchar(200)> -- keywords describing this animal to aid in searching
Description<text> text icon -- a description of the animal, perhaps including such things as physical characteristics, habitat, main diet, etc.
Image filename: <char(30)> -- the name of the image file
pixel-width: <integer> -- the width of the image in pixels
pixel-height: <integer> -- the height of the image in pixels
format: <char(4)> -- {JPEG | GIF | PNG | BMP}
comments: <vchar(500)> -- any comments on the image
image: <image> image icon -- a picture of the animal type

id<integer> -- a TreeEntitiy foreign key
taxon_name<char(60)> -- the name of the particular taxon or group or classification level represented by this node
type<char(40)> -- describes the type of taxon or the level within the classification system
keywords<vchar(200)> -- keywords describing this node to aid in searching
Description<vchar(1000)> -- a description of this entity

id<sequence> -- a unique system id for this entity

Description of Relationships

E1: Node(0,n) -- A Node may or may not contain other Nodes.
E2: Node(0,1) -- A Node may be contained by another Node.

E1: Node(0,n) -- A Node may or may not contain Animals
E2: Animal(0,n) -- An Animal may be contained by any number of Nodes, or none at all.
